What is a 10G DWDM SFP+ optical transceiver | Fiberwdm.com

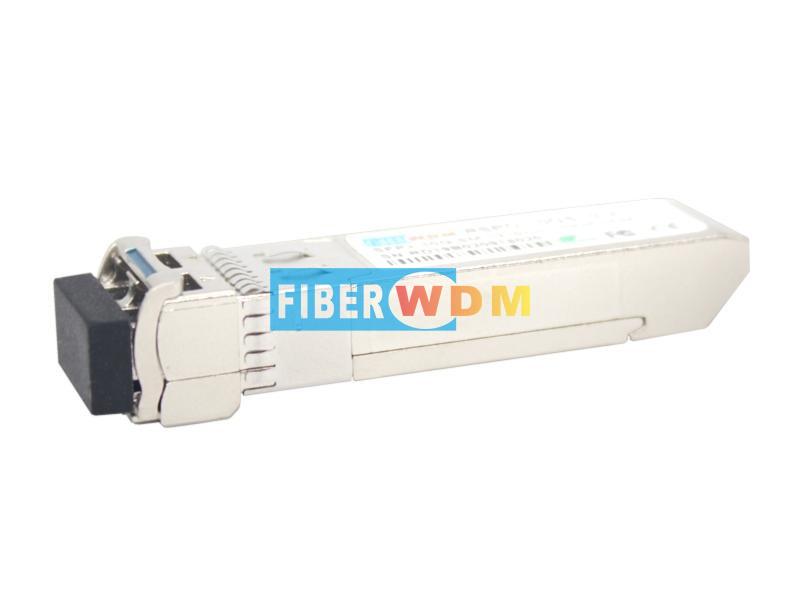

 10G DWDM SFP+ optical transceiver, using hot-swappable SFP+ package, the maximum rate is up to 11.3Gbps, EML COOLED emitting laser (more suitable for high-speed and long-distance transmission than traditional DFB laser), duplex LC optical port, The transmission distance on single-mode fiber can reach up to 100KM, with digital diagnostic monitoring function.


Features of DWDM SFP+ optical module

◇Full duplex transceiver module

◇Comply with SFP+ MSA, 10 Gigabit Ethernet, CPRI, Fibre Channel, SONET/SDH and OTN OTU2e standards

◇Optional wavelength C61-C15 channel: 1528.77nm-1565.50nm (0.8nm interval, C15-C61 channel)

◇The transmission distance can reach up to 20 to 100 kilometers

◇Optional operating temperature range: commercial grade, extended grade, industrial grade

◇Power supply voltage 3.3V

◇Comply with RoHS environmental protection standards

10G SFP+ Optical Transceiver

FiberWDM optical communication 10G DWDM SFP+ optical module series

*** 10G DWDM SFP+ 20KM

*** 10G DWDM SFP+ 40KM

*** 10G DWDM SFP+ 80KM

*** 10G DWDM SFP+ 100KM


If you are interested in our fiber optic products, you can contact us.
